Use TLE-Raw#

This section introduces how to use TLE-Raw. TLE-Raw is available on trition_3.6.x branch.

TLE Raw provides a low-level extension interface for Triton, allowing users to fill capability gaps and gain fine-grained control via third-party dialects and languages (for example, using CUDA for thread-level scheduling, synchronization, and memory access). Users can choose between portability and composable optimization (via MLIR dialect integration) and maximum fine-grained control (via CUDA integration) based on the target hardware and toolchain maturity.

Integrate MLIR dialect into LLVM for portability and composable optimization#

The following is an example of MLIR (Multi-Level Intermediate Representation).

from typing_extensions import Literal as L

from mlir import ir
from mlir.dialects import arith, llvm, nvvm, scf
import torch
import triton
import triton.language as tl
from triton.experimental.tle.raw import dialect, Input
import triton.experimental.tle.language.raw as tle_raw

DEVICE = triton.runtime.driver.active.get_active_torch_device()

@dialect(name="mlir")
def vector_add_tile(
    output: Input[L["!llvm.ptr<1>"]],
    x: Input[L["!llvm.ptr<1>"]],
    y: Input[L["!llvm.ptr<1>"]],
    n_elements: Input[L["i32"]],
):
    tidx = nvvm.read_ptx_sreg_tid_x(ir.IntegerType.get_signless(32))
    bdimx = nvvm.read_ptx_sreg_ntid_x(ir.IntegerType.get_signless(32))
    gdimx = nvvm.read_ptx_sreg_nctaid_x(ir.IntegerType.get_signless(32))
    bidx = nvvm.read_ptx_sreg_ctaid_x(ir.IntegerType.get_signless(32))
    tidx = arith.index_cast(ir.IndexType.get(), tidx)
    bdimx = arith.index_cast(ir.IndexType.get(), bdimx)
    gdimx = arith.index_cast(ir.IndexType.get(), gdimx)
    bidx = arith.index_cast(ir.IndexType.get(), bidx)
    idx = arith.addi(arith.muli(bidx, bdimx), tidx)
    step = arith.muli(bdimx, gdimx)
    n_elements = arith.index_cast(ir.IndexType.get(), n_elements)
    for i in scf.for_(idx, n_elements, step):
        i = arith.index_cast(ir.IntegerType.get_signless(32), i)
        ptrty = ir.Type.parse("!llvm.ptr<1>")
        f32ty = ir.Type.parse("f32")
        xptr = llvm.getelementptr(ptrty, x, [i], [-2147483648], f32ty, 0)
        yptr = llvm.getelementptr(ptrty, y, [i], [-2147483648], f32ty, 0)
        xval = llvm.load(f32ty, xptr)
        yval = llvm.load(f32ty, yptr)
        outval = arith.addf(xval, yval)
        outptr = llvm.getelementptr(ptrty, output, [i], [-2147483648], f32ty, 0)
        llvm.store(outval, outptr)
        scf.yield_([])

@triton.jit
def add_kernel(
    x_ptr,
    y_ptr,
    output_ptr,
    n_elements,
    BLOCK_SIZE: tl.constexpr,
):
    tle_raw.call(vector_add_tile, [output_ptr, x_ptr, y_ptr, n_elements])

def add(x: torch.Tensor, y: torch.Tensor):
    output = torch.empty_like(x)
    assert x.device == DEVICE and y.device == DEVICE and output.device == DEVICE
    n_elements = output.numel()
    grid = lambda meta: (triton.cdiv(n_elements, meta["BLOCK_SIZE"]), )
    add_kernel[grid](x, y, output, n_elements, BLOCK_SIZE=1024)
    return output

if __name__ == "__main__":
    x = torch.randn(2048, device=DEVICE)
    y = torch.randn(2048, device=DEVICE)
    z = add(x, y)
    assert torch.allclose(x + y, z), (x + y, z)

TLE-raw consists of the following parts:

  • Dialect declaration (decorator)

    • Decorator: @tle.raw.language(name=“mlir”)

    • Explanation: This decorator marks the function vector_add_tile as a block of code written directly in the MLIR dialect. It tells the compiler, specifically through the FlagTree EDSL (Embedded Domain Specific Language), that the body of this function should be interpreted and lowered using MLIR operations (such as nvvm, arith, and tensor), rather than standard Python or Triton operations.

  • Function implementation

    • Function: vector_add_tile(…)

    • Explanation: This is the actual implementation of the computation kernel written using low-level MLIR Python bindings. It defines the specific operations (thread indexing, memory loading, floating-point addition, and memory storing) that will be executed by the hardware.

  • Function call

    • Invocation: tle_raw.call(vector_add_tile, args=[x, y, output])

    • Explanation: This line invokes the declared MLIR function (vector_add_tile) from within the high-level Triton kernel (add_kernel). It passes the input tensors x, y, and the output buffer. Crucially, it provides hardware mapping hints (defining the number of threads) and memory layout specifications (defining the tensors as residing in “shared” memory with a specific order). This allows the compiler to bridge the gap between the high-level tl.load/tl.store operations and the low-level MLIR IR generation.

Integrate CUDA into LLVM for maximum fine-grained control#

This section only covers how to integrate CUDA kernel into LLVM inline path. Integrating other vendors into LLVM inline path can follow similar steps.

TLE-Raw supports CUDA kernel integration via the LLVM inline path. Vendors integrating TLE-Raw on the CUDA side should evaluate:

  • Whether clang can generate LLVM IR and serialize it as text

  • Whether TTGIR-related pass operations can be reused or adapted

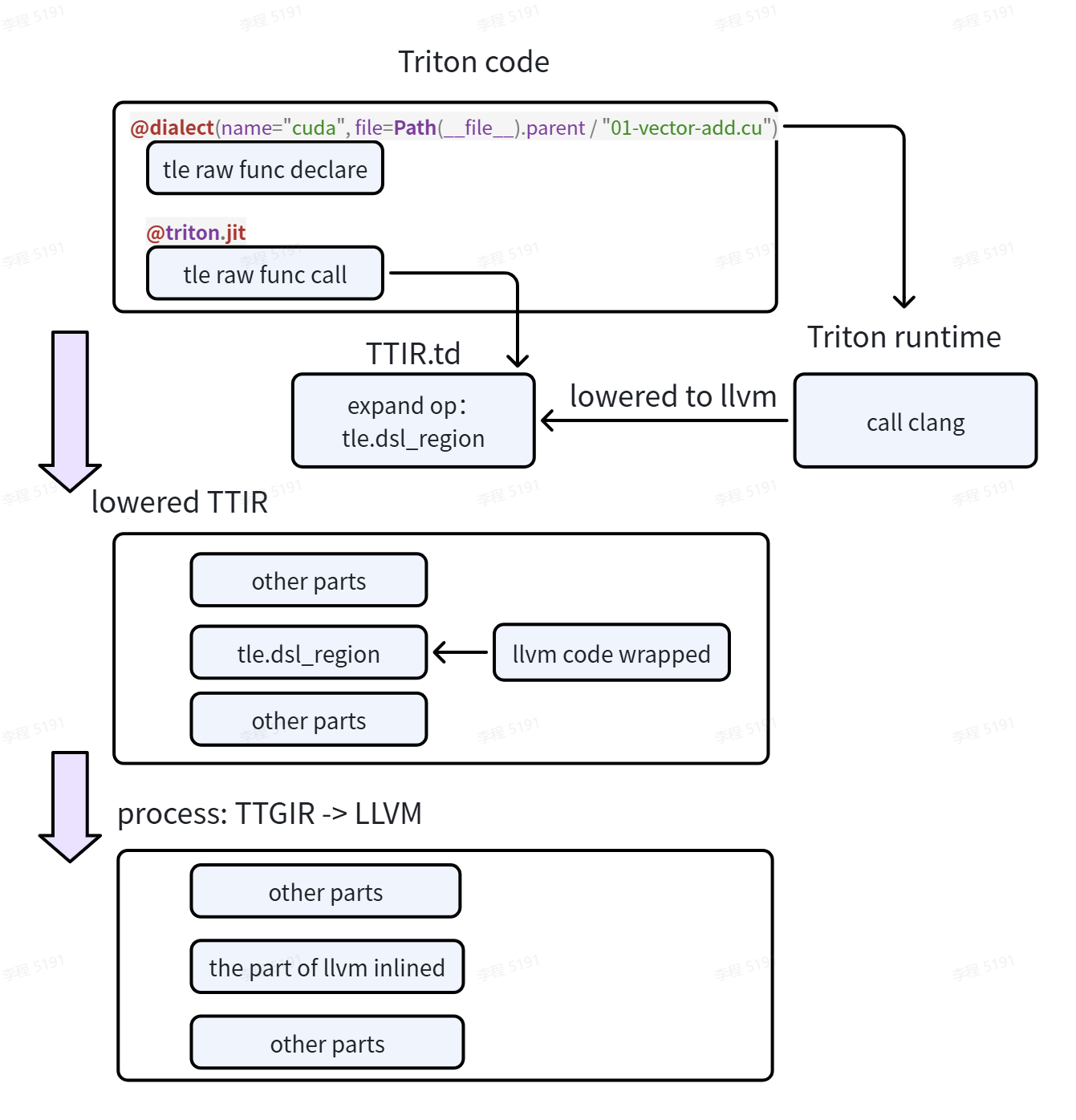

LLVM route#

Basic flow: use clang to translate CUDA code into LLVM IR, then apply the existing LLVM inline pass.

alt text

Usage example#

  • Reference: python/tutorials/tle/raw/cuda/01-vector-add.py

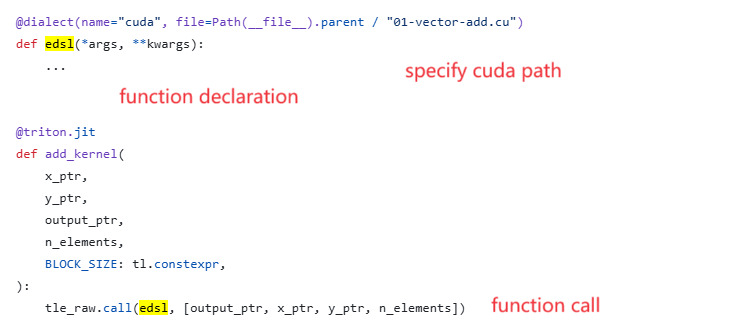

  • Triton side: provide the CUDA file path and function declaration. Other vendors could register your own language name as the value of the name parameter. alt text

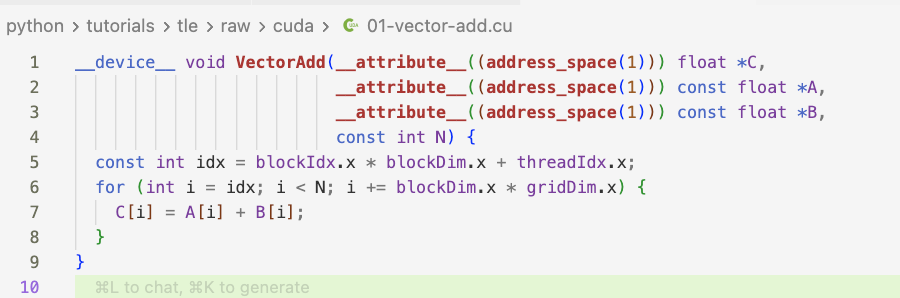

  • CUDA side: implement the CUDA kernel. LLVM struct parameter declarations are still retained (because subsequent inlining requires handling the Triton ptr-to-LLVM conversion, which is currently left to the user for one-to-one mapping). Other vendors should customize the mapping based on your own language.

alt text

Processing flow#

Frontend: CUDA-LLVM integration into Triton frontend and runtime#

Step

Module

Key Pass Development

Dialect registration entry (dialect decorator)

python/triton/experimental/tle/raw/runtime.py

- Maintains registry = {"cuda": CUDAJITFunction, "mlir": MLIRJITFunction}.
- dialect(name="cuda", ...) constructs a CUDAJITFunction object.

TTIR extension: Tle_DSLRegionOp

FlagTree/third_party/tle/dialect/include/IR/TleOps.td

- Accepts Triton parameters;
- Wraps LLVM IR into the region field.

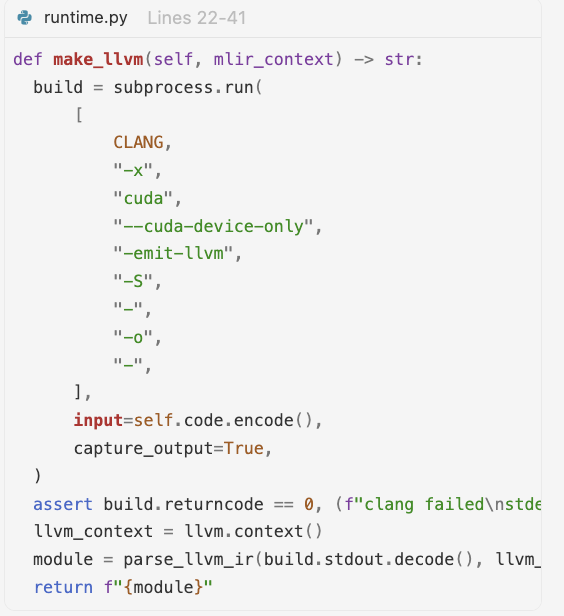

CUDA runtime: where clang is actually invoked

python/triton/experimental/tle/raw/cuda/runtime.py

- CUDAJITFunction reads the .cu source text at initialization.
- make_llvm() directly calls subprocess.run(clang ...) to produce LLVM IR.
- parse_llvm_ir(...) converts the text into a module that can be plugged into the Triton builder.
alt text

Middle-End: Python to C++, MLIR pass relationship and pass inheritance#

Step

Module

Key Pass Development

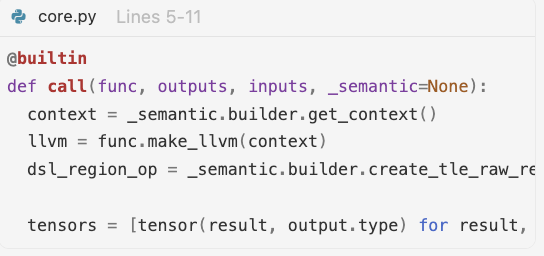

Attach LLVM function to dsl_region

python/triton/experimental/tle/language/raw/core.py

- call() obtains the builder context.
- Triggers func.make_llvm(context).
- Calls create_tle_raw_region_by_llvm_func(...) to generate the dsl_region op.
alt text

C++ bridge: IR injection and type bridging

third_party/tle/triton_tle.cc

- third_party/tle/triton_tle.cc exposes Python bindings for create_tle_raw_region_by_llvm_func and raw passes.
- third_party/tle/triton_tle_raw.cc implements createTLERawRegionByLLVMFunc: parses the function, clones it into the current module, performs parameter/return type mapping, and creates tle::DSLRegionOp + tle::YieldOp.

Backend: CUDA-LLVM IR conversion — parameter handling and Triton/TLE-Raw data bridging#

Step

Module

Key Pass Development

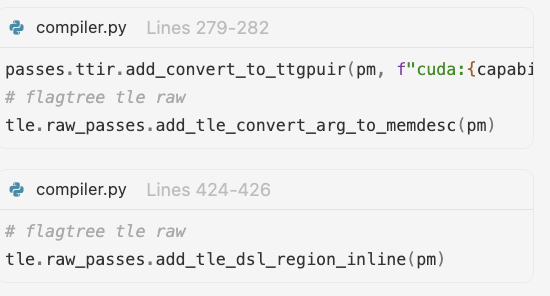

Backend pass registration

third_party/nvidia/backend/compiler.py

- make_ttgir() inserts tle.raw_passes.add_tle_convert_arg_to_memdesc(pm), which converts dsl_region tensor parameters into memdesc form.
- make_llir() inserts tle.raw_passes.add_tle_dsl_region_inline(pm), which inlines dsl_region into the main control flow before LLVM conversion.
alt text

Parameter bridging

TleConvertArgToMemDesc (TTGIR stage)

- Converts tensor parameters/results in dsl_region to memdesc semantics, adding local storage and synchronization.
- Key actions:
  - tensor operand → LocalAlloc + LocalStore;
  - dsl_region result tensor → LocalLoad readback;
  - inserts NVVM::Barrier0Op when necessary;
  - handles pack-related new types.

LLVM inline preparation

TleDSLRegionInline (LLIR stage)

- Inlines tle.dsl_region from a region op.
- Key actions:
  - splits block, creates continuation;
  - rewrites yield as a branch to continuation;
  - replaces original dsl_region result uses;
  - erases dsl_region op.

Semantic object mapping#

Semantic Object

Triton Side

TLE-Raw Side

LLVM Side

Scalar parameter

i32/f32/…

Directly as Tle_ArgType

LLVM scalar parameter

Pointer parameter

tt.ptr<T>

Passed directly or extracted as LLVM ptr

attribute((address_space(N))) T*

Tensor input

tensor<...>

Converted to ttg.memdesc / dsl_region operand

Expanded to allocated/aligned/offset/sizes/strides

Tensor output

tensor<...>

dsl_region result + tle.pack/yield

LLVM struct or multi-return fields, then repacked
